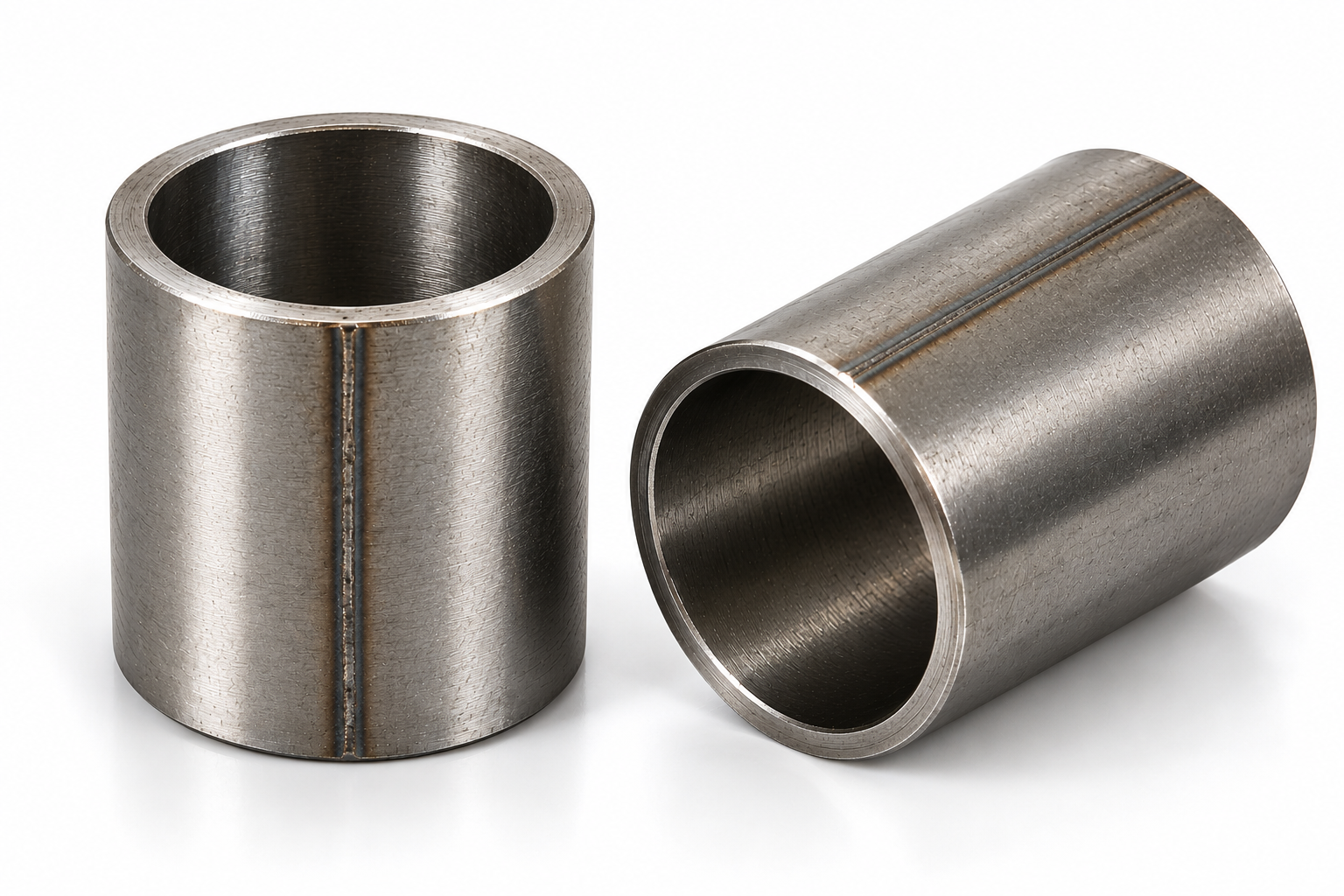

Precision CNC machined suspension wishbone bush tube, manufactured to the specifications detailed in the Haynes Roadster – Build Your Own Sports Car book.
Designed for use when fabricating suspension wishbones, Panhard rods and other custom suspension components, these steel tubes accommodate a polyurethane suspension bush that is pressed into place after the tube has been welded into the assembly.
Ideal for Haynes Roadster, Locost and other kit car or buggy construction projects requiring accurately machined suspension bush housings.
✓ Precision CNC machined steel bush tube
✓ Manufactured to Haynes Roadster specifications
✓ 33.7mm outside diameter
✓ 28.5mm inside diameter
✓ 2.6mm wall thickness
✓ 35mm overall length
✓ Suitable for wishbones, Panhard rods and suspension fabrication
✓ Supplied individually – 1 bush tube
✓ Manufactured in Lancashire by PlazCutz Ltd

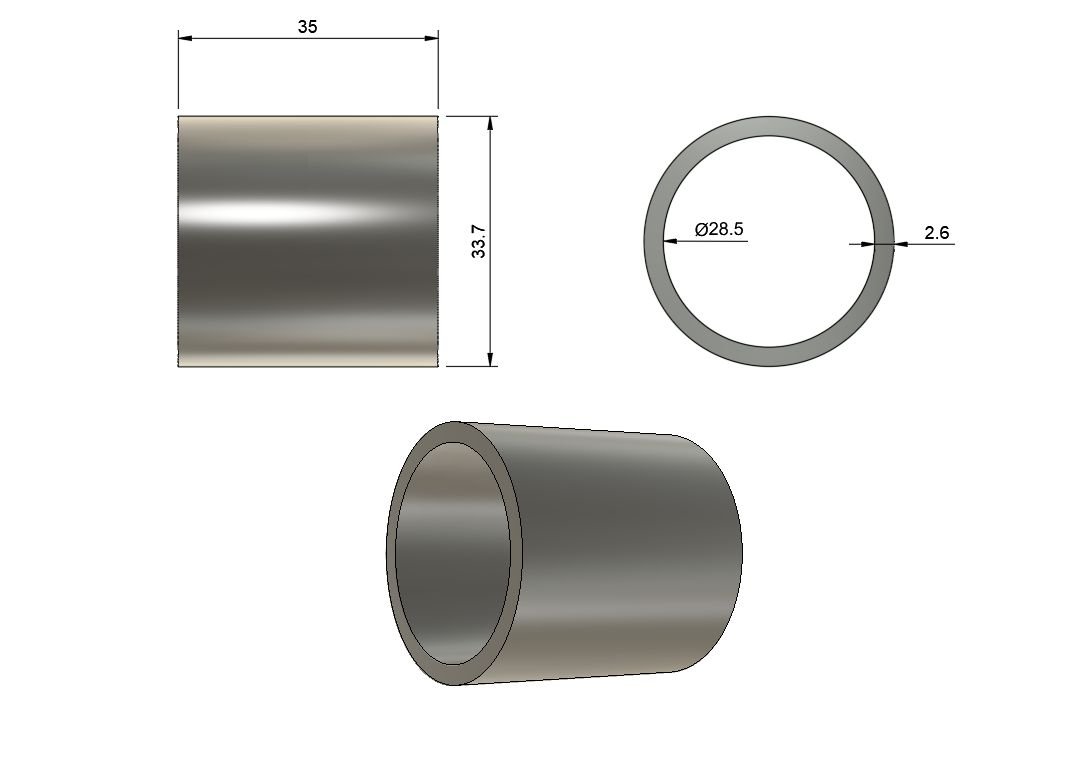

Dimensions: 33.7mm OD × 28.5mm ID × 35mm long.
Please Note: Polyurethane bushes are not included. Select the quantity of steel bush tubes required for your project.
Precision CNC machined and proudly manufactured in Lancashire.
