Our 7/16 UNF Weld-In Top Hat Bush is precision CNC machined from EN8 medium-carbon steel, providing a strong, internally threaded mounting point for steel fabrication, automotive projects and custom engineering applications.
Featuring a 24mm diameter flange and 16mm diameter body, this steel top hat bush is designed for welding into suitable steel components where a secure female threaded fixing is required.
Ideal for kit cars, motorsport fabrication, chassis brackets, mounting plates and general engineering projects.
✓ Precision CNC machined from EN8 steel
✓ 7/16 UNF female internal thread
✓ 24mm diameter flange
✓ 16mm diameter body
✓ 5mm flange thickness
✓ 12mm body length
✓ 17mm overall length
✓ Suitable for welding into steel fabrications
✓ Manufactured in the UK by PlazCutz Ltd

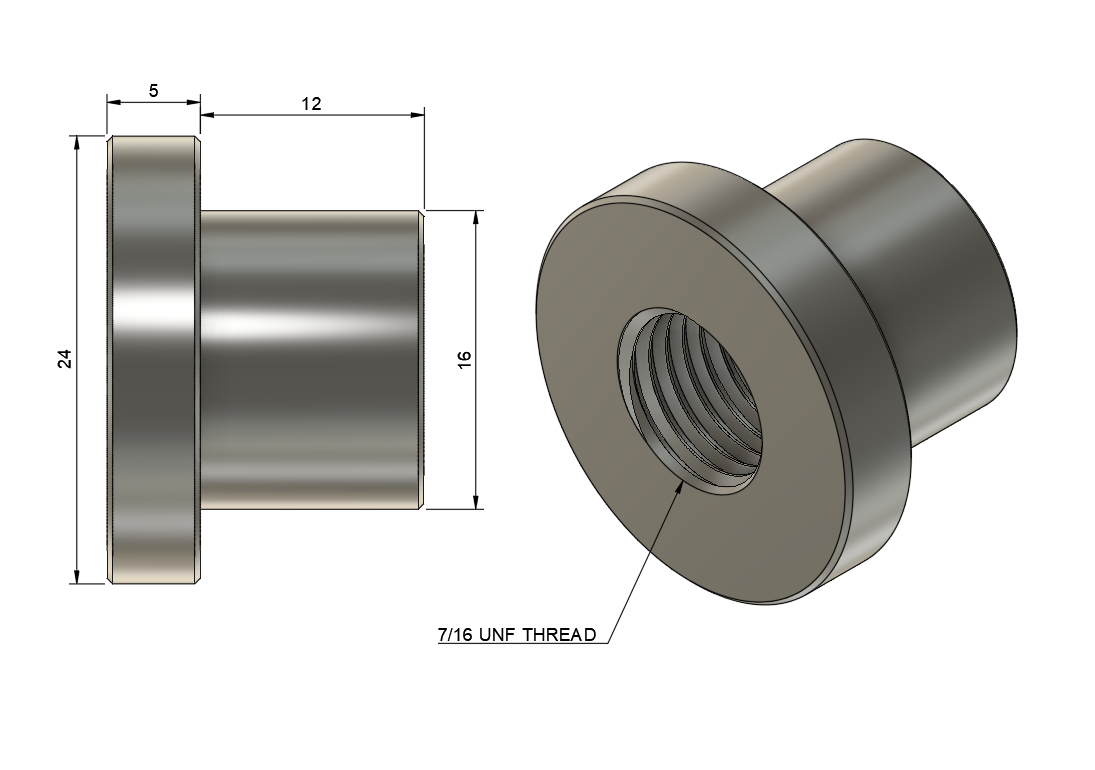

Thread: 7/16 UNF
Flange diameter: 24mm
Flange thickness: 5mm
Body diameter: 16mm
Body length: 12mm
Overall length: 17mm
Material: EN8 medium-carbon steel
Automotive and kit-car fabrication
Motorsport chassis and brackets
Custom threaded mounting points
Steel fabrication and engineering
Replacement or bespoke threaded inserts
Seat Belt Harness Mounts
Precision CNC machined and supplied ready for welding or further fabrication.
Manufactured by PlazCutz Ltd in Lancashire, UK.
