Our M8 × 25mm weld-in threaded steel top hat bush provides a durable female threaded mounting point for fabrication, engineering and mechanical assemblies.
Precision CNC turned in-house at PlazCutz from EN8 (080M40) medium carbon steel, this version features a 5mm thick flange, a 14mm diameter body and an M8 × 1.25mm internal thread.
With a 25mm overall length, including the flange, it offers a thicker flange alternative to our standard 3mm version.
The bush is supplied in bare, unfinished steel, ready for welding or further finishing as required.
✓ CNC turned from EN8 (080M40) steel
✓ M8 × 1.25mm internal metric thread
✓ 25mm overall length, including flange
✓ 5mm thick flange
✓ 20mm flange diameter
✓ 14mm body diameter
✓ Top hat design for fabricated assemblies
✓ Manufactured in Lancashire, UK
✓ Supplied unfinished

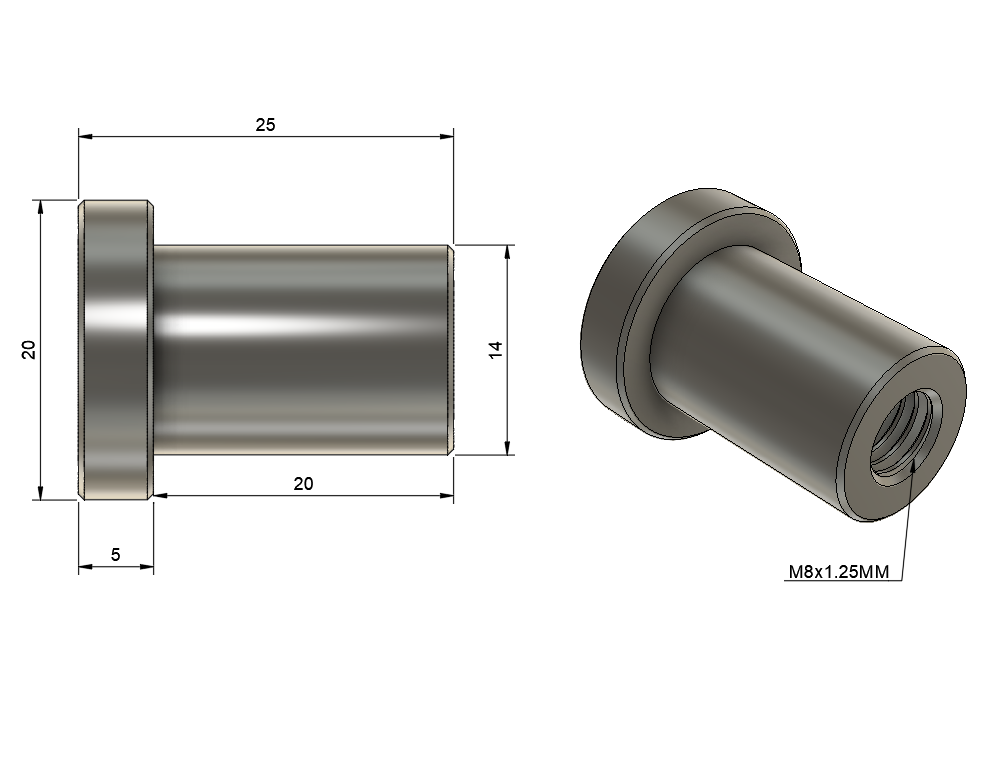

Thread: M8 × 1.25mm
Overall length: 25mm
Flange diameter: 20mm
Flange thickness: 5mm
Body diameter: 14mm
Body length: 20mm
Material: EN8 (080M40) steel
Suitable for fabricated brackets, threaded mounting points, machinery repairs, automotive projects, motorsport fabrication and custom steel assemblies.
Require a different thread size, diameter, flange thickness or length? PlazCutz offers bespoke CNC turning and machining services for individual components and production quantities.
Precision CNC turned and proudly manufactured in Lancashire.
